Can You Bypass a Coolant Temperature Sensor Safely?

A coolant temperature sensor can sometimes be bypassed electrically for a brief diagnostic test, but it should not be used as a permanent repair. The engine control module relies on this sensor to adjust fuel mixture, ignition timing, cooling-fan operation, and emissions controls.

For a complete overview of symptoms and repair considerations, see can you bypass a coolant temperature sensor.

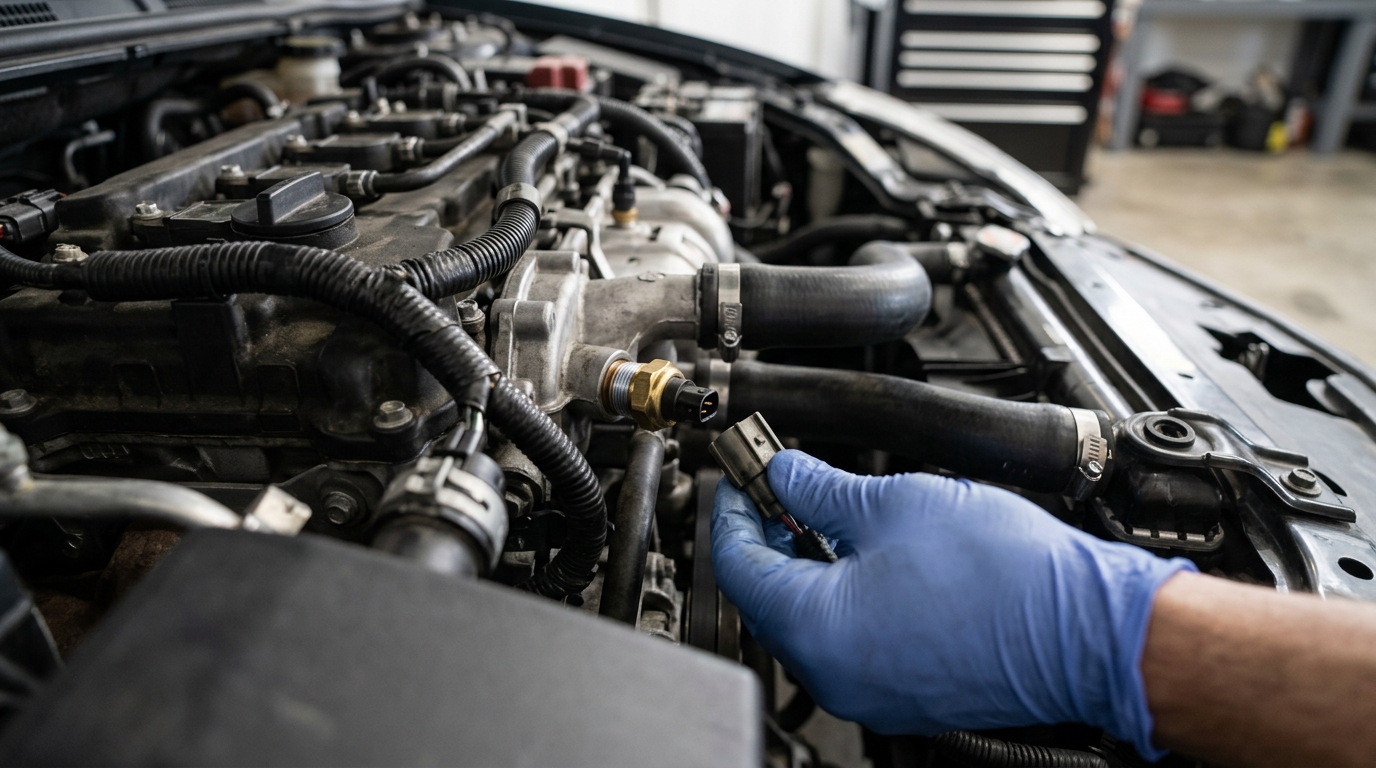

Disconnect the sensor plug only when the engine is cool, then inspect the terminals for coolant contamination, corrosion, or bent pins. Using the vehicle’s wiring diagram, measure sensor resistance with a digital multimeter and compare it with the manufacturer’s temperature-resistance chart.

Most coolant temperature sensors are negative-temperature-coefficient thermistors, so resistance should decrease as coolant temperature rises. A fixed open circuit, short circuit, or reading outside specification indicates a sensor or wiring fault.

Before replacing parts, connect an OBD-II scan tool and review live coolant-temperature data after the car has sat overnight. The reading should be close to ambient air temperature and generally within a few degrees of the intake-air temperature reading.

After startup, confirm that the displayed temperature rises smoothly rather than jumping abruptly. A reading near -40°F often indicates an open circuit, while an unusually high fixed reading may indicate a short.

Match a replacement sensor by vehicle year, make, model, engine size, connector shape, and thread specification. Sensors that look similar may use different resistance curves and can send inaccurate data to the control module.

Inspect the harness near the thermostat housing for heat damage or broken insulation. Use only the sealant or sealing washer specified by the manufacturer, because excess thread sealant may affect grounding on certain designs.

A jumper wire or fixed resistor can imitate only one temperature value, preventing the computer from tracking warm-up and operating temperature correctly. Remove any temporary test connection immediately after diagnosis and reconnect or replace the sensor.

Refill approved coolant if any was lost, bleed trapped air according to the service procedure, and clear diagnostic trouble codes. Confirm that the radiator fan cycles properly and check for leaks once the engine reaches operating temperature.
